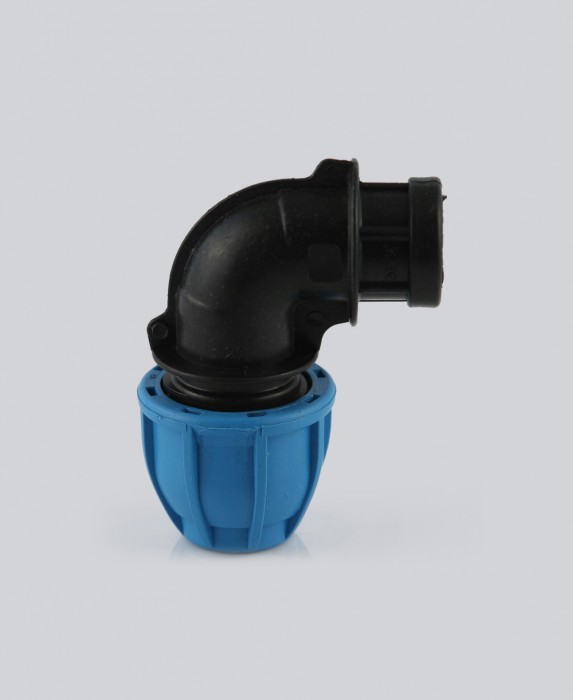

90 Degree Elbow Compression / Female thread

Water Distribution Fittings:
Our MDPE fittings are made in Europe by an Iso 9001 certified manufacturer. Suitable for HDPE and MDPE pipes, they are fast and easily connected.

Applications
Above or below ground distribution for:
Water or Irrigation systems for residential, municipal, sport areas, golf courses, agricultural, horticultural or vineyards.

Specifications
- The body, nut and collar are made from Polypropylene, the collet is made of Polyacetal, and the seal ring is NBR rubber.
- Manufactured to meet EN 14236:2000
- Maximum working pressures: 16 bar for diameter 20 to 63. 10 bar for diameter 75 to 110.
- Maximum operating temperature is 40C
